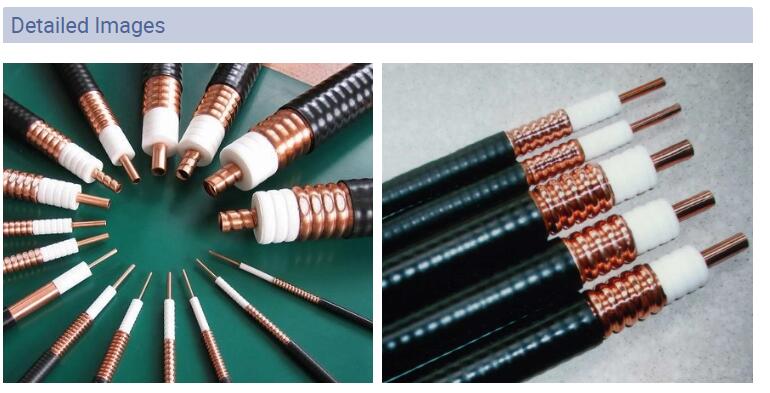

1/2" Superflexible Coaxial Cable Telecom RF Feeder Cable is made on advanced physical foaming insulation production line and argon arc welding, corrugating and slotting production line which are imported respectively from Austria and USA.
50 ohms corrugated copper tube coaxial cable is mainly used for the connection of transmitter, receiver and antenna and also connection between wireless communication equipments or other low loss and VSWR signal transmission at high frequency application. The cables is featured with low attenuation, low VSWR, small coefficient of temperature, strong corrosion resistance, good longitudinally water seal and high power capacity.
Structure:
| Jacket materials | PE |
| Jacket color | Black |
| Outer Conductor Material | Corrugated copper |
| Dielectric Material | Foam PE |
| Flexibility | Superflexible |
| Inner Conductor Material | Copper-clad aluminum wire |
Dimension:
| Nominal size. | 1/2" inch super flexible |
| Cable Weight. | 200kg/km |
| Inner Conductor OD | 3.55mm |
| Diameter Over Dielectric | 9.00mm |
| Outer Conductor OD | 11.90mm |
| Diameter Over Jacket | 13.60mm |
Technical data of 1/2" in superflxible feeder cable, is available by request.
Except the 1/2" in superflexible feeder cable, we are also supplying other sizes, such as 1/4"s, 3/8"s, 3/8", 1/2"s, 1/2", 7/8"s, 7/8", 7/8"L, 1-1/4", 1-5/8" ...etc.
Customize requirement is accepted. Welcome contact us for detail negotiation.
services: In order to meet our clients' requirements, we also customize special
products. Just show us your drawing, sample or indicated details, we will produce
it or please kindly send us your specific engineering parameters such as IMD, VSWR,plating etc. We will discuss with you about the details and please feel free to
contact us.
Quality: In order to ensure product quality, we have combined with our highly
qualified employees, advanced production lines, sophisticated testing equipment
and nationwide service network.
Guaranty: We provide comprehensive service, including quality service, guidance
services, We focus on customer needs in every detail.
